TECHNICAL SPECIFICATIONS

M.Y. ARES
Mangusta 108' built by Overmarine

ARES is a 34m Motor Yacht built by
Overmarine.

Naval architect
Stefano Righini and Andrea Bacigalupo

Interior architect
Owner along with Studio Transit

---

Main dimensions and data

Lenght overall
33,48 mt / 109,84 ft
Beam
7,12 mt / 23,4 ft
Draft
1,30 m / 4,3 ft
Displacement full load
111 ton.
Gross tonnage
163 ton.
Cruising speed range
31 knots

Tanks capacity

Fuel capacity
14 ton.
Water capacity
2 ton.
Desalinator
Double 500 liters per hour with water purification system

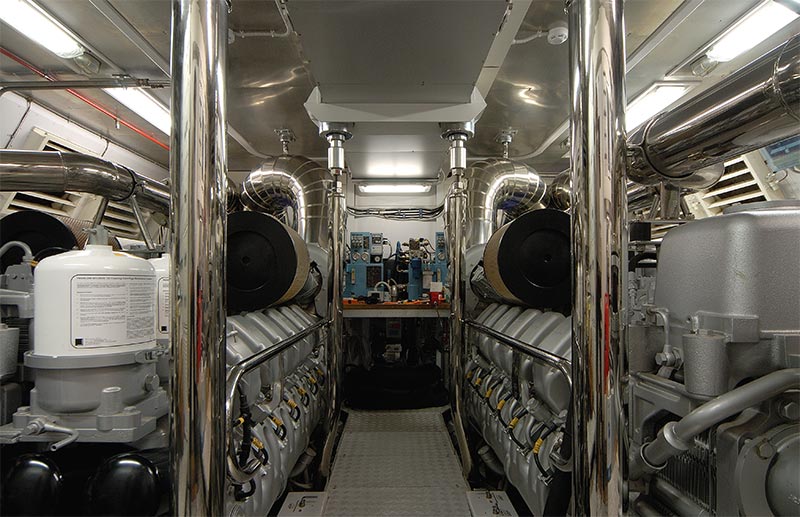

Propulsion

Engines Power
2 X MTU 12V4000 M90 - 2750 hp
Transmission
Kamewa waterjets 6352 (Rolls-Royce)
Top Speed
38 knots approx.

Accomodation

Guests
8 + 1
Guest's cabin
4
Bath
5
Crew
3

Toys

Tender Novamarine RH 400
Jet Sky Yamaha
